Description
Product Description & Mechanism

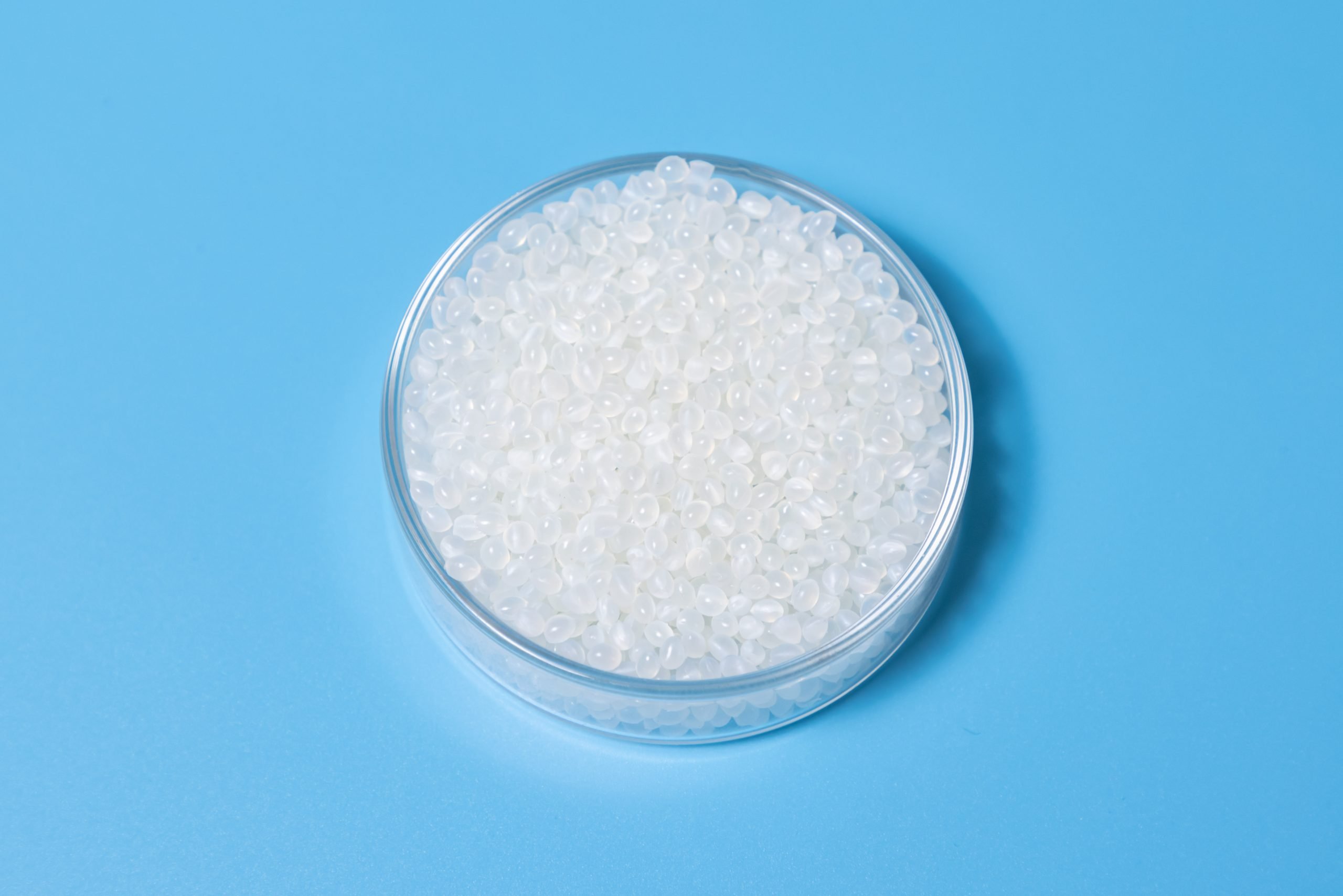

Our TPE overmolding compatibilizers are maleic anhydride grafted elastomers based on POE, PE, PP, or SEBS. They improve compatibility among TPE components and help fillers disperse in the matrix. They also raise interfacial polarity, which produces strong bonding when TPE is overmolded onto nylon. Specific grades can adjust hardness, improve heat resistance, or increase surface wear resistance.
Key Features
- Improves compatibility and filler dispersion in TPE compounds.
- KT-2518E improves heat resistance of modified TPE.
- KT-153A increases hardness and surface wear resistance.
Typical Physical Properties
| Property | Test Method | Unit | KT-2518A | KT-2518B | KT-2518C | KT-2518E | KT-2518F | KT-2510 | KT-2512 |
| Base resin | — | — | Elastomer | Elastomer | Elastomer | Elastomer | Elastomer | SEBS | SEBS |
| Functional group content (MAH wt%) | Company standard | wt% | High | Medium | High | Medium | High | High | High |
| Melt flow rate (190°C/2.16kg) | ISO 1133 | g/10min | 3.0–8.0 | 10.0–18.0 | 0.5–2.0 | 6.0–10.0 | 0.5–2.0 | 0.2–1.0 | 10–25* |
| Density | ISO 1183 | g/cm³ | 0.89–0.92 | 0.87–0.89 | 0.86–0.88 | 0.87–0.89 | 0.86–0.88 | 0.90–0.92 | 0.90–0.92 |
Note: High > 0.8%; *Tested at 230°C/5kg.
Recommended dosage ranges from 2%–5% for KT-153A, 5%–10% for KT-2510/2512, 10%–20% for KT-NJ002, and 20%–30% for KT-2518 series. Adjust based on hardness and adhesion target.
